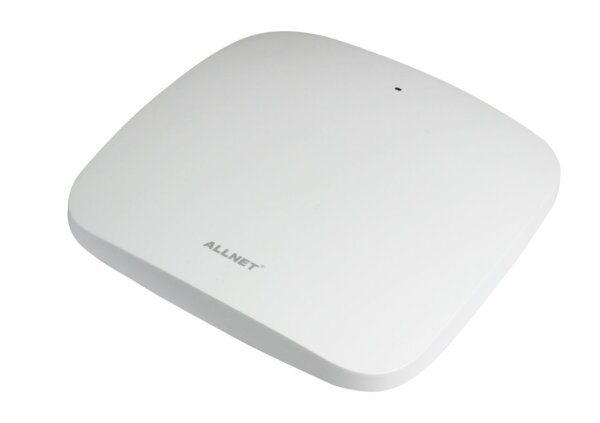

ALLNET Apollo Wireless AP WIFI6 - AX3000 - 2x2 - Indoor - 2.5 GbE - ALL-WAPC0522AX-3000 - Apollo

ALLNET Apollo Wireless AP WIFI6 - AX3000 - 2x2 - Indoor - 2.5 GbE - ALL-WAPC0522AX-3000 - Apollo

Artikelnummer: 7-211734
GTIN: 4038816126658
Hersteller: ALLNET

Herstellerinformationen:

ALLNET GmbH
Maistr. 2
82110 Germering
Deutschland
info@allnet.de
https://www.allnet.de

verantwortliche Person:

ALLNET GmbH
Maistr. 2
82110 Germering
Deutschland
gpsr@allnet.de
https://www.allnet.de

180,99 €

inkl. 19% USt. , zzgl. (Standard)

ab	Stückpreis / Stk
3	177,37 €*
5	175,56 €*
10	171,94 €*

.
Lieferzeit: 1 - 3 Werktage (DE - Ausland abweichend)

Stk

Beschreibung
GPSR Informationen

ALLNET Apollo Wireless AP WIFI6 • AX3000 • 2x2 • Indoor • 2.5 GbE • ALL-WAPC0522AX-3000 • Apollo

Highlights:

Dual Concurrent 802.11ax-Architektur und Abwärtskompatibilität mit 11ac/a/b/g/n-Clientgeräten
Unterstützung für WPA3 und WPA2-AES-Authentifizierung
5 dBi integrierte 2x2-Antenne
Unterstützt bis zu 2.400 Mbps im 5GHz Frequenzband und 574 Mbps im 2.4GHz Frequenzband
Unterstützt 5GHz DFS-Kanäle
Lokale und Fernverwaltung über FitController Controller ohne Gebühren
1 GB 802.3af PoE Port für einfache Platzierung bis zu 328 Fuß von einer Stromquelle entfernt
Auswahl an AP- und WDS-Modi, um Ihre Verwaltungs- und Bereitstellungsanforderungen zu erfüllen.

ALLNET Apollo Series ALL-WAPC0522AX-3000 2x2 Lite Managed Indoor Wireless Access Point bietet fortschrittliche 802.11ax Technologie, die dem Benutzer eine unglaublich schnelle und effiziente Leistung mit einer maximalen theoretischen Geschwindigkeit von 574 Mbps auf der 2,4GHz Frequenz und unglaublichen 2.400Mbps auf der 5GHz Frequenz bietet! Darüber hinaus ist es durch erstklassige WPA3/WPA2PSK AES-Verschlüsselungsprotokolle für unvergleichliche Sicherheit geschützt. Sicherheit.

Physical Interfaces:

Technical Details Basics:

Basic		ALL-WAPC0522AX-3000 Apollo Entry 2x2 Entry AP
Main Chipset		IPQ5018 ARM A53, 1GHz Dual-Core
Flash		8MB SPI NOR (reserved) 128MB NAND
RAM		512MB DDR3
Transmit Power (Chain + Combining Gain)		2.4GHz: 21dBm
		5GHz: 21dBm
BLE		BLE 5.0 (reserved), IPQ5018 Integrated
Interface		1x 10/100/1000/2500Mbps RJ45 Port IEEE802.3at PoE IN 1x 10/100/1000Mbps RJ45 Port (reserved) 1x Reset Button 1x DC Barrel Jack
Operating Temperature		0 ~ 40°C
Dimensions (W x L x H)		160 x 160 x 30mm
Enclosure Material		Plastic (Top Cover) Metal (Bottom Cover)
Certification (Generic)		FCC, CE

Fully Technical Details:

Fully

ALL-WAPC0522AX-3000 Apollo Entry 2x2 Entry AP

Wireless Radio Specification

Access Point Type

Indoor, dual radios concurrent,
5GHz 802.11 ax 2x2 MU-MIMO is backwards compatible with 802.11 ax/ ac/a/n mode,
2.4GHz 802.11 ax 2x2 MU-MIMO is backwards compatible with 802.11 b/g/n/ac

Frequency Radio

2.4GHz: 2400MHz ~ 2495MHz,

5GHz: 5150MHz~5250MHz, 5250MHz~5350MHz, 5470~5725MHz,

5725MHz~5850MHz

Support radios and channels will be varied on the configured regulatory domain.

Supported Radio Technology

802.11ax: Orthogonal Frequency Division Multiple Access(OFDMA) 802.11b: Direct-sequence spread-spectrum (DSSS) 802.11ac/a/g/n: Orthogonal Frequency Division Multiple (OFDM)

802.11ax supports very high throughput (VHT)—HE 20/40/80/160 MHz 802.11ac supports very high throughput (VHT)—VHT 20/40/80 MHz 802.11n supports high throughput(HT) —HT 20/40 MHz

802.11n supports very high throughput under the 2.4GHz radio –VHT40 MHz (256-QAM)

802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU

Supported Modulation Type

802.11b: BPSK, QPSK, CCK

802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM

802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM

802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM

Transmit Power (Combined)

2.4GHz: 21dBm 5GHz: 21dBm

Maximum power is limited by regulatory domain

MU-MIMO

MU-MIMO allows multiple spatial streamsto be allocated to different

clients simultaneously on both download and upload sides.

Tx Beamforming (TxBF)

Increasing signal reliability and transmitting distance.

Power

Maximum Power Consumption (TBD,estimated)

17.4W

PowerSource

Standard IEEE802.3at
DC IN 12V/2A

Antenna

Internal Antenna

2.4GHz:4dBi

5GHz:5dBi

BLE2.4GHz:4.5dBi (reserved)

Interfaces

Networking Interface

One 10/100/1000/2500 Mbps Ethernet Port
One 10/100/1000 Mbps Ethernet Ports (reserved)

Reset Button

One(1) Reset Button

(Convert Access Point to the Factory default or the Users Default)

DCIN

One(1) 12V DC IN

Mounting

Ceiling or Wall Mounting

Mount Access Point in on the ceiling or wall via included accessories

Mechanical &amp Environment

Dimensions (LxWxH)

160mmx160mmx30mm

Operating

Temperature: 0°C~40°C Humidity:0%~90% typical

Storage

Temperature: -20°C~70°C Humidity:0%~90% typical

Marks

FCC
Subpart15 B
Subpart C 15.247
Subpart E 15.407
CE
EN 300 328
EN 301 893
EN 50385
EN 55032
EN 55024

RF Performance Specification Wireless Indoor Access Point

Channel	Data Rate	Transmit Power (Typical AVG.)				Receive Sensitivity
		Tolerance = +/-1.5 dB				Receive Sensitivity
		2.4GHz		5GHz		2.4GHz	5GHz
		Combine	EIRP	Combine	EIRP	2.4GHz	5GHz
802.11b	1M	21	25	-	-	-95	-
802.11b	11M	21	25	-	-	-88	-
802.11g/a	6M	21	25	21	26	-92	-92
802.11g/a	54M	18	22	18	23	-74	-73
802.11n HT20	MCS0	21	25	21	26	-92	-92
802.11n HT20	MCS7	18	22	18	23	-74	-72
802.11n HT40	MCS0	21	25	21	26	-91	-89
802.11n HT40	MCS7	18	22	18	23	-72	-64
802.11ac VHT20	MCS0	21	25	21	26	-92	-92
802.11ac VHT20	MCS8	17	21	17	22	-67	-67
802.11ac VHT40	MCS0	21	25	21	26	-91	-89
802.11ac VHT40	MCS9	17	21	17	22	-66	-64
802.11ac VHT80	MCS0	-	-	20	25	-	-86
802.11ac VHT80	MCS9	-	-	17	22	-	-61
802.11ac VHT160	MCS0	-	-	20	25	-	-83
802.11ac VHT160	MCS11	-	-	16	21	-	-59
802.11ax HE20	MCS0	21	25	21	26	-92	-92
802.11ax HE20	MCS11	16	20	16	21	-62	-61
802.11ax HE40	MCS0	21	25	21	26	-90	-89
802.11ax HE40	MCS11	16	20	16	21	-59	-58
802.11ax HE80	MCS0	-	-	20	25	-	-86
802.11ax HE80	MCS11	-	-	16	21	-	-56
802.11ax HE160	MCS0	-	-	20	25	-	-83
802.11ax HE160	MCS11	-	-	15	20	-	-53
